Description

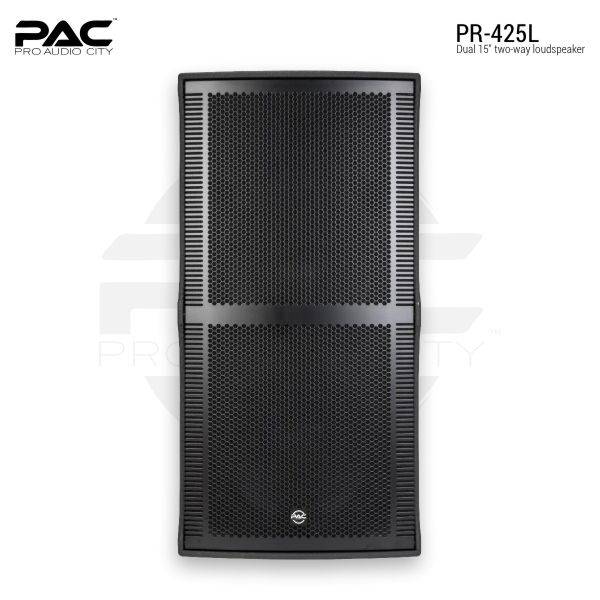

PR-425L 1Pair
Dual 15″ Two-way loudspeaker
The PR-425L loudspeaker is indeed a variant of the PR-425 model, and it offers improved power handling capabilities. Here are the key specifications:
The low-frequency section features two 15″ drivers, each with a 75mm (3 in) voice coil, which allows for a good balance between low-frequency output and speaker size.
The power handling specifications for the PR-425L are as follows:
- RMS Power: 800W
- Continuous Power: 1600W
- Peak Power: 3200W
The high-frequency section features a 44mm diaphragm compression driver with a ferrite magnet
The frequency response range of the PR-425L spans from 45Hz to 20kHz, allowing it to reproduce a wide range of audio frequencies.
The maximum rated SPL is 110dB, representing the loudest sound level the speaker can achieve without distortion. As mentioned before, this indicates that the PR-425L is designed for applications where lower sound pressure levels are required.
The nominal impedance is 4Ω, indicating the electrical resistance the amplifier should be designed to match when connected to the speaker.
The input connectors are two 4-pole Speakon connectors, commonly used in professional audio setups for secure and reliable connections.

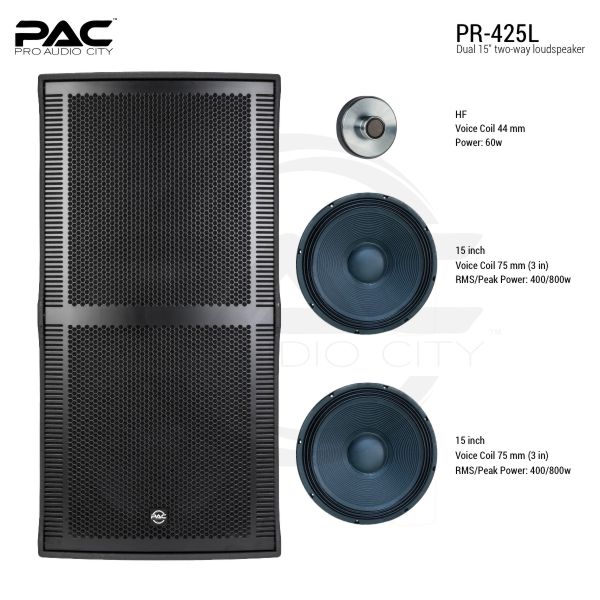

SPECIFICATION
- Low Frequency Speaker: 2 x 15″, Voice Coil 75 mm (3 in)
- RMS/Continuous/Peak Power: 800W / 1600W / 3200W
- High Frequency: 450HF Diaphragm 44mm
- Frequency Response: 45Hz – 20kHz
- SPL at (1W/1m): 100dB
- Max. Rated SPL: 110dB
- Nominal Impedance: 4Ω
- Input Connectors: 4 Pole Speakon x 2
Overall, the PR-425L loudspeaker is designed to provide balanced performance with improved power handling capabilities, making it suitable for various professional audio applications such as small to medium-sized events, installations, and venues where high sound pressure levels are not the primary concern.
