PR-425H Dual 15″ two-way loudspeaker

₹ 65,000.00

PR-425H loudspeaker, with its enhanced power handling capabilities, is an excellent choice for high-level music reproduction, powerful bass, and demanding audio applications in professional settings such as concerts, live events, and large venues.

SKU: PR425H Categories: , , Tags: , , , ,

Description

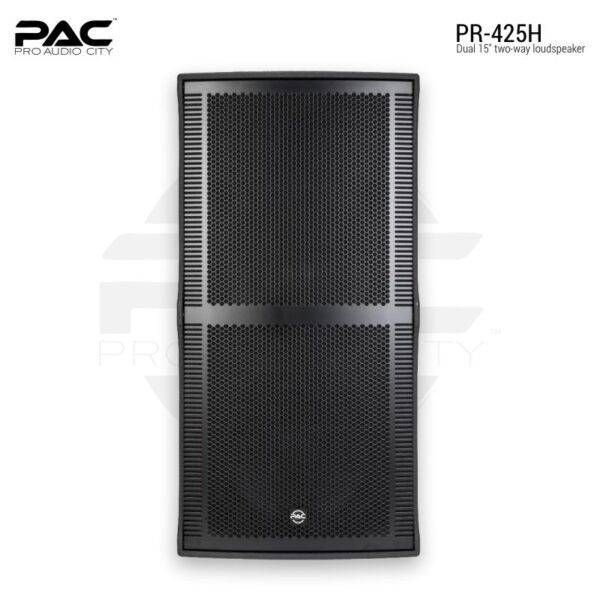

PR-425H
Dual 15″ Two-way loudspeaker



The PR-425H is a professional dual 15″ high-power two-way loudspeaker designed for high-level music reproduction and powerful bass. The PR-425H now has an increased power rating with three power specifications: RMS (Root Mean Square) of 1200W, Continuous Power of 2400W, and Peak Power of 4800W. This means it can handle higher power levels, making it suitable for even more demanding applications.



Here are some key specifications and features of the PR-425H loudspeaker:



  • Frequency Response: The frequency response range of the PR-425H is 37Hz to 20kHz, meaning it can reproduce sounds within this range.

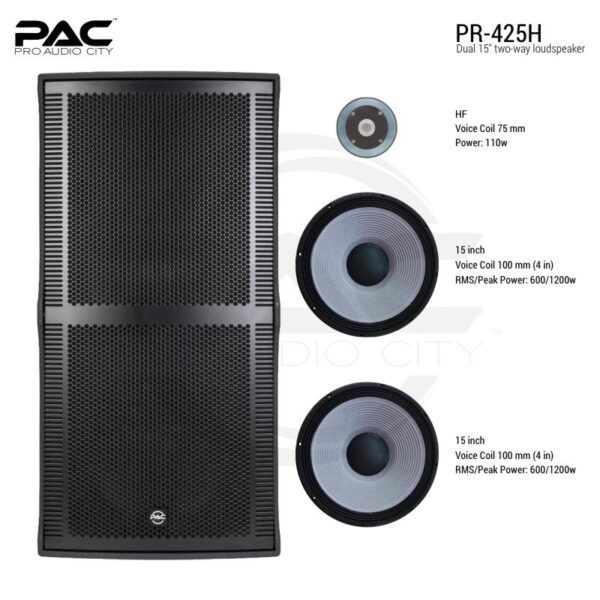

  • Low-Frequency Drivers: It is equipped with two 15″ low-frequency drivers, each with a 102mm (4 in) voice coil. These drivers are designed to deliver extended low-frequency output, providing deep bass performance.
  • High-Frequency Driver: The high-frequency section features a 75mm diaphragm compression driver with a ferrite magnet, specifically the 750HF model. This driver is capable of handling high power .
  • Coverage Pattern: The loudspeaker offers a coverage pattern of 75°x 50°, which indicates the dispersion angle of the sound it produces.
  • Full-Range Passive Operation: The PR-425H is a passive speaker, meaning it requires an external amplifier to drive it.
  • SPL (Sound Pressure Level): At 1W/1m, the speaker has an SPL of 102dB, indicating its sensitivity or how loud it can get with a given amount of power.
  • Max. Rated SPL: The maximum rated sound pressure level of the PR-425H is 129dB, which represents the maximum volume it can achieve without distortion.
  • Nominal Impedance: The speaker has a nominal impedance of 4Ω, which specifies the electrical resistance the amplifier sees when connected to the speaker.
  • Input Connectors: The speaker is equipped with two 4-pole Speakon connectors, commonly used in professional audio setups for secure and reliable connections.
  • Suspension Points: The PR-425H model includes five suspension points that can be used with optional M10 eyebolts or detachable track fittings, allowing for flexible installation and mounting options.



SPECIFICATION

  • Low Frequency Speaker: 2 x 15″, Voice Coil 100 mm (4 in)
  • RMS/Continuous/Peak Power: 1200W / 2400W / 4800W
  • High Frequency: 750HF Diaphragm 75mm
  • Frequency Response: 37Hz – 20kHz
  • SPLat (1W/1m): 102dB
  • Max. Rated SPL: 129dB
  • Nominal Impedance: 4Ω
  • Input Connectors: 4 Pole Speakon x 2
